ImmVision: display and inspect images: zoom and pan, pixel values, colormaps for one-channel and float images, views that zoom together, and an inspector that collects images from anywhere in a program.
image() displays an image with full user control, image_display() only shows it. inspector_add_image()
collects images at any step of a pipeline, and inspector_show() displays them.
In Python, an image is a numpy array (any dense dtype); in C++, an ImageBuffer or a cv::Mat. The color order is
RGB by default: call use_bgr_color_order() once for OpenCV images.
Upstream repository · The book’s page
Modules¶
In imgui_bundle (from imgui_bundle import immvision):
immvision: 26 functions, 8 classes, 2 enums · the C++ view
Demos using it¶
The demos of the catalog that use it (the pictures link to their code and to the playground).
Interactive exploration of the Mandelbrot set¶
Click a point of the Mandelbrot set to see its Julia set.
More
Fly to famous values of c, and zoom into both pictures: near each point, the two sets look alike.
Uses: ImmVision
ImmVision: display and inspect¶

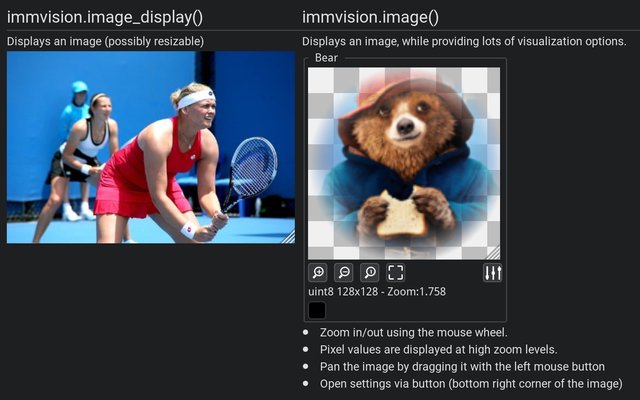

Two ways to show an image (a NumPy array in Python, a cv::Mat in C++).
More
immvision.image_display_resizable() draws it, and you drag its corner to resize it. immvision.image() adds the inspection tools: zoom with the mouse wheel until the pixel values show, pan by dragging, and a button at the bottom right corner opens the settings (colormaps, channels, values).
Uses: ImmVision, OpenCV
ImmVision: the inspector¶

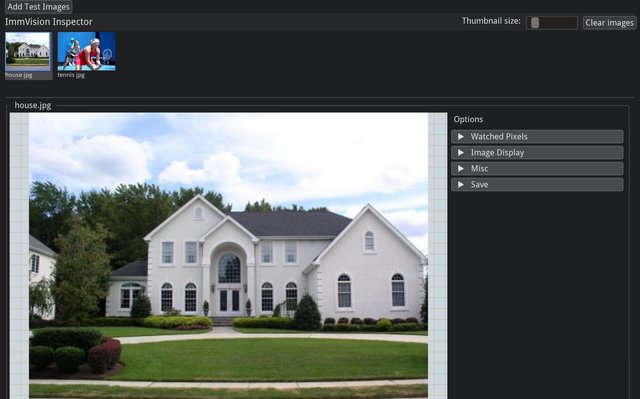

Call immvision.inspector_add_image() anywhere, for example at each step of an image processing algorithm.
More
Then immvision.inspector_show() shows all the collected images, with the zoom, the pan and the pixel inspection of immvision.image(). Here, two photos at startup; on the desktop, a button adds images of every depth and channel count.
Uses: ImmVision, OpenCV
ImmVision: images that zoom together¶

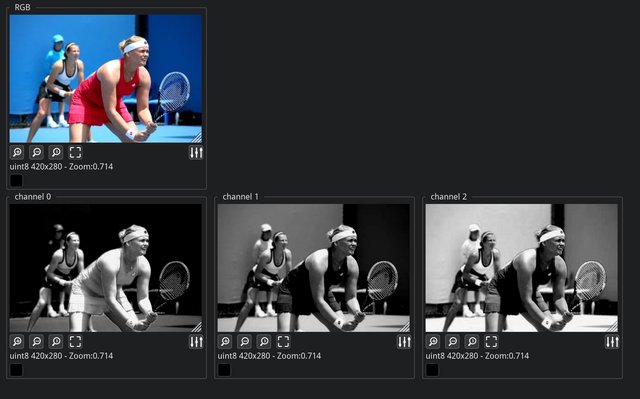

Image params that share a zoom_key follow each other: pan or zoom one image, and the others move with it.
More
Here, a photo and its three color channels. Pan by dragging, zoom with the mouse wheel. The image is read with OpenCV (pip install imgui-bundle[imgproc]).
Uses: ImmVision, OpenCV
ImmVision: image processing, tuned live¶

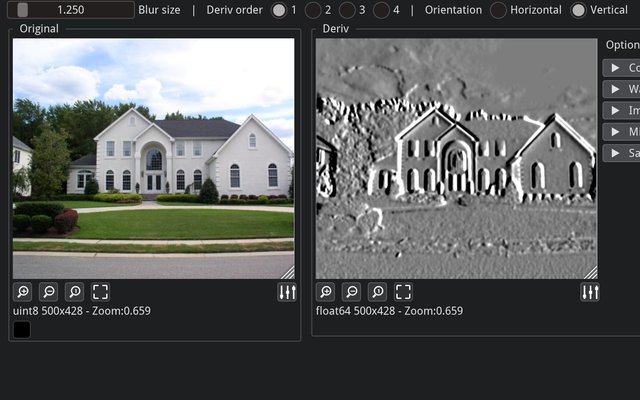

A Sobel filter on a photo: change the blur, the derivative’s order and its orientation, and the result updates at once.
More
The original and the filtered image share a zoom key, so they pan and zoom together; the options panel of the filtered image applies colormaps. A button downloads a random photo. The processing is OpenCV’s (pip install imgui-bundle[imgproc]), the display ImmVision’s.
Uses: ImmVision, OpenCV
Node editor: an image pipeline¶
An image flows through a graph of filters, and each node shows its result.
More
Change a parameter, and the nodes downstream follow at once. The patterns of imgui-node-editor for a real app: typed pins, links refused with a reason, a node created by dropping a link in empty space, menus, a group.
Uses: ImPlot, ImmVision, node editor, OpenCV
