ImmApp: runs an app in one call, with the bundle’s add-ons set up: ImPlot, ImPlot3D, markdown, LaTeX, the node editor, ImAnim.
immapp.run(gui_function, window_title="My app", with_implot=True) is the usual way to start an app of the bundle;
AddOnsParams lists the add-ons. It relies on Hello ImGui: a hello_imgui.RunnerParams gives full control over the
window, the docking and the callbacks.
It also holds helpers: sizes in em units (em_size, em_to_vec2), a render loop driven by the app
(manual_render), plots and widgets inside the node editor, and the code utilities of the demos.
Upstream repository · The book’s page
Modules¶
In imgui_bundle (from imgui_bundle import immapp):
immapp: 20 functions, 4 classes, 0 enums · the C++ viewimmapp.nb: 4 functions, 0 classes, 0 enums
Demos using it¶
The demos of the catalog that use it (the pictures link to their code and to the playground).
A parametric curve¶
Turn the knobs, or click Random: the curve follows at once.
More
At every frame, the GUI function draws the plot with ImPlot and the knobs with imgui-knobs, and reads their values right there. No callbacks, no widget objects: that is the immediate mode.
Uses: ImPlot, knobs
Assets and add-ons¶
Load images and icons from your assets folder, and use two add-ons: markdown and ImPlot.
More
A markdown editor with a live preview, and a pie chart whose values you can drag. Tick More info under each part to see how it is done. The add-ons are activated with immapp.AddOnsParams.
Uses: ImPlot

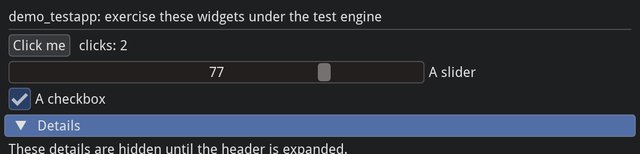

Drive an app, capture screenshots¶
A test function drives the app: it clicks, moves a slider, opens a header, and takes a screenshot at each step.
More
immapp.testing.run() starts the app, runs the test function, then exits. Handy for automated checks and for documentation pictures. See the test engine doc.
Desktop only
Knobs, toggles, spinners and more¶
Knobs, toggle switches, spinners, a command palette, a dock-like cool bar: widgets beyond Dear ImGui’s own.
More
They come from the libraries in the bundle: imgui-knobs, imgui_toggle, imspinner, imgui
Uses: knobs, toggles, spinners, cool bar, command palette, file dialogs
Context managers (imgui_ctx)¶
In Python, with imgui_ctx.begin("Window"): replaces a begin() / end() pair, and the end() can no longer be forgotten.
More
The same exists for child windows, menus, popups, tables, tabs, fonts and styles, and for ImPlot with implot_ctx. Open a section to try it and read its code. See the Python tips.
Uses: ImPlot
Run code alongside the GUI (async)¶
The GUI runs as an asyncio task, while a Python loop keeps computing.
More
The window shows both rates: the GUI’s frames per second, and the loop’s computations per second. The loop yields with await asyncio.sleep(0) to share the event loop. See async support.
Desktop only
